CAPITOL THEATRE WINDSOR –TECHNICAL HIGHLIGHTS

121 University Ave W, Windsor ON N9A 5P4.

Google Coordinates: 42.317031636837434, -83.04001609815778

Download the complete Capitol Theatre Technical Package

Contacts:

Eric Tulp- Technical Director- technical@capitoltheatrewindsor.ca

Julia Galli- Theatre Manager- jgalli@capitoltheatrewindsor.ca

Front of House Manager- Gayle Allen- foh@capitoltheatrewindsor.ca

Overview:

The Capitol Theatre is a 1920 Heritage Theatre in Downtown Windsor, Ontario. Shared entrance/lobby space with 2 theatres (620 seats/200 seats) and flexible reception room.

Main Theatre: “The Pentastar”. 620 fixed theatre seats (500 main floor & 120 balcony)

Mid-Size Theatre: “The Kelly”. 200 fixed theatre seats. Permanent film screen on stage.

Reception/Meeting Room: “The Joy”. 60-80 loose seating or standing.

PENTASTAR THEATRE – MAIN THEATRE

  • 620 fixed theatre seats (500 main floor & 120 balcony)
  • Lighting, audio, screen and projector (laser projector)
  • 6 dressing rooms
  • Dimensions: Proscenium is 48’ wide x 21’ high; stage is 30’ deep from proscenium to back wall (curtain options available to reduce stage size)
  • Load In Area: Entrance from Pelissier Street (one way heading north). Load in Door Opening Size: 5’11×10’.  Enters on to stage right.
  • Cordless mics available for additional cost
  • 4:3 screen and projector available for cost
  • Wheelchair accessible seating is available on main floor.
  • See Seating Map – Pentastar for details

KELLY THEATRE – Midsize theatre

  • 200 fixed theatre seats
  • Intimate stage. Permanent film screen on stage.
  • Lighting, audio, screen and projector (laser projector)
  • 2 dressing rooms
  • Wheelchair accessible seating available.
  • Stage size: 30’ wide x 10’ deep (in front of projection screen)
  • Load In Area: Entrance from Alley on West side of building or Front Theatre doors.
  • See Seating Map – Kelly for details

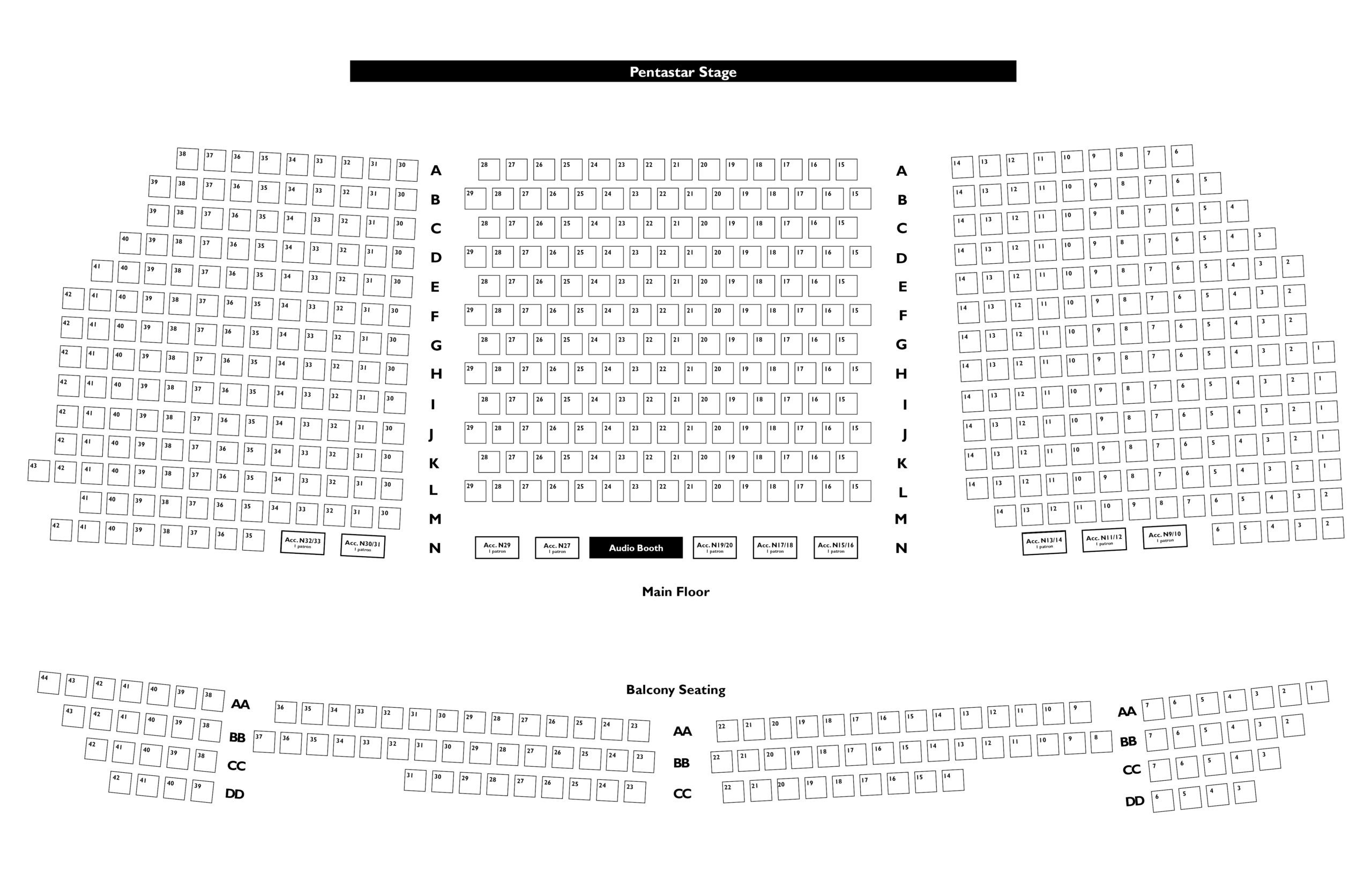

Pentastar Seating Map

Kelly Seating Map

Pentastar Line Set Plot

Pentastar Lighting Plot

Pentastar Stage Layout

Please contact Technical Services or Theatre Manager for more detailed information regarding updated technical information.

Theatre Manager, Julia Galli
bookings@capitoltheatrewindsor.ca
Technical Director, Eric Tulp
technical@capitoltheatrewindsor.ca
